Gear Grinding

ECONOMICAL SOLUTIONS FOR PRECISION GEAR GRINDING

Starting in 2007 Riverside Spline & Gear started construction of our new 10,000 sq. ft. Gear Grinding Center. Our first acquisition was the new 2007 Hofler 900 which allowed us to grind a gear as large as 39 inches.

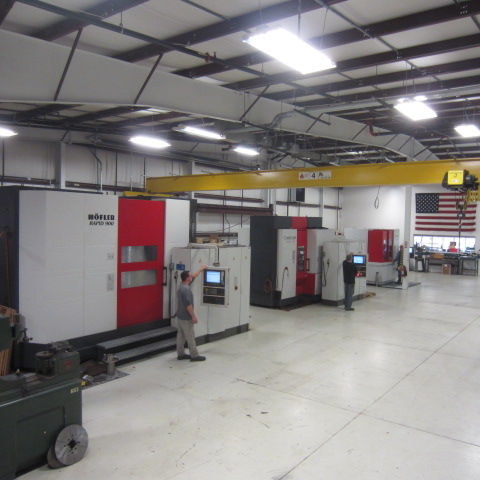

Today we have added four more new grinders consisting of two Hofler 700, a Hofler Helix 400 and a Hofler Rapid 1500L. All five machines are equipped with on board checking and operate 23 hours a day.

Riverside is known in the industry for its quality and quick turnaround on gear grinding. This is why many other gear companies continue to use us as their gear grinding source.

EXTERNAL GEARS

Gear Diameter

12-1500 mm

.5" to 59"
Center Distance Above Table 360-1500 mm 14.2" - 59"
Axial Stroke (Max) 1500 mm 59"
Helix Angle   +- 45°,  90° +- 45°, 90°
Module 1-25 mm(extendable to 34 mm) 15DP - 1.25 DP
Profile Height 41 mm(extendable to 60-80 mm) 1.6"
Grinding Wheel Width 60 mm (extendable to 90 mm) 2.95"
Grinding Wheel
Diameter
400 mm 15.75" to 4"
Table Load 6000 kg 13,227 Lbs.
